Yorkville MM5D 5-Channel Powered Box Mixer with Digital Effects-2 x 90 Watts-Music World Academy

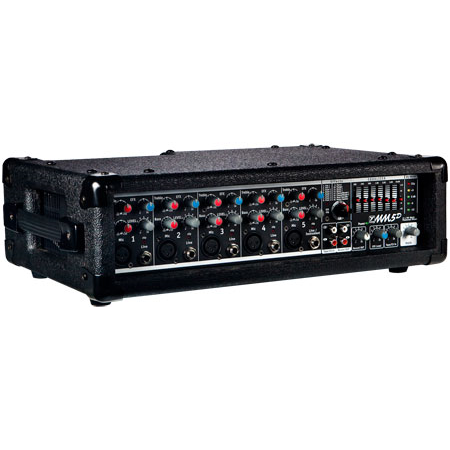

Yorkville MM5D 5-Channel Powered Box Mixer with Digital Effects-2 x 90 Watts

Regular price $349.99 Sale price $449.00

The MicroMix MM5D powered box mixer is the ideal PA solution for most applications where 2 x 90 watts (stereo) is enough power yet input flexibility is required. Balanced XLR mic, 1/4-inch phone and dual RCA line inputs, onboard user controlled digital effect unit and tape outs (with separate level controls) make the MM5D the perfect powered mixer for live PA, rehearsal, installation or announcement PA applications.
The rugged and reliable MM5D has flexible outputs, a scratch resistant front panel, durable carpet covering and corner protectors.


5 input channels ( XLR & 1/4-inch in, 2-band EQ, level & effects send control per channel)
Additional CD/Tape in with level control
Separate Record out with level control
Stereo 7-band master Graphic EQ
2 x 90w powered out (stereo)
1/4-inch & Speakon speaker output jacks
On-board Digital effects


Number of Channels 5
Mono Channel EQ 2 band shelving
Channel Effects Yes
Inputs - XLR (bal) Ch. 1 - 5
Inputs - 1/4" Ch. 1 - 5
Inputs - RCA (unbal) Tape/CD in
Internal Effects 16 Digital Effects: reverb, echo, chorus, flange
Effects Send No
Effects Return No
Effects Return to Main Yes
Effects Return to Monitor No
Record Outputs Stereo RCA with level control
Max Gain to Line Out -Mic Input (dB) 84dB
Max Gain to Line Out -Line Input (dB) 70dB
Main Outputs ( Line Level) No
Outputs - Amp A - 1/4" Jacks 1
Outputs - Amp A - Speakon 4-pin 1
Mixer - Frequency Response (Tone and EQ Flat,+/-2dB) 40Hz - 20,000Hz
Amp A - Power Output @ 8 Ohms (0%1"THD, 1kHz) 2 x 60 watts
Amp A - Power Output @ 4 Ohms 2 x 90 watts
THD - 1kHz (dB) less than 0.1%
Typical crosstalk -1 kHz (dB) less than – 60dB
Power Consumption (typ/max) 1.0 A @ 120VAC / 0.5 A @ 230VAC
Protection Clip limiter, thermal shutdown
Cooling Passive heatsink and internal Fan
Dimensions (DWH, inches) 9 x 17.75 x 6
Dimensions (DWH, cm) 22.85 x 45 x 15.25
Weight (lbs/kg) 19.2 / 9.7
