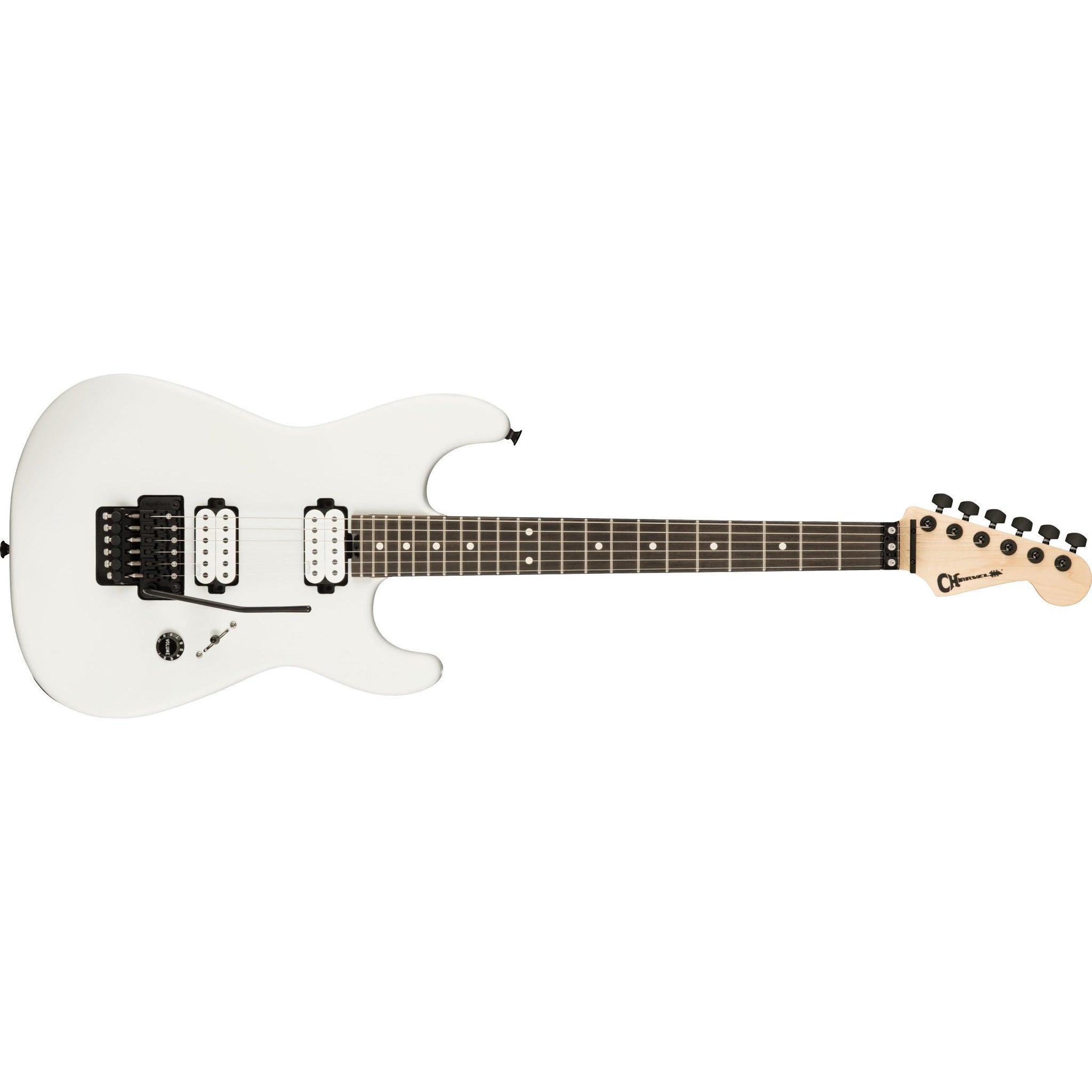

Charvel Jim Root Signature Pro Mod SD1 HH FR E Electric Guitar with Gig Bag-White Satin

The Jim Root Signature Pro-Mod San Dimas® Style 1 HH FR E begins with a mahogany body that has been sleekly contoured with a scalloped lower back bout for comfortable and unencumbered upper-fret access. The bolt-on maple neck is graphite-reinforced for rock-solid stability to withstand extreme climate changes, while the 12"-16" compound radius ebony fingerboard with rolled edges and 22 jumbo frets allows for effortlessly fast playing and comfortable bends. A heel-mount truss rod adjustment wheel and Luminlay® side dots are game changers for touring musicians, allowing for pain-free neck relief tweaks on the fly and fingerboard guidance on even the darkest of metal stages.

A fearsome set of EMG® Jim Root Daemonum™ humbucking pickups combines the power of active pickups with the sensitive touch of passive pickups. Featuring exclusive white bobbins, these incredibly responsive and versatile pickups create a massive wall of crushing sound that cuts to the front of the mix. The streamlined controls consist of a three-way blade pickup switch and a volume knob.

Dive bomb for days while maintaining tuning stability courtesy of the premium Floyd Rose® 1500 Series double-locking tremolo and locking tuners.

The Jim Root Signature Pro-Mod San Dimas® Style 1 HH FR E comes in a stark Satin White finish with all-black hardware including the three-way blade switch tip and skirted Strat®-style control knob. A Charvel multi-fit hardshell gig bag is also included.

General
Series: Artist Signature
Orientation: Right-Hand
Color: Satin White
Country Of Origin: MX

Neck
Headstock: Licensed Fender® Stratocaster®
Neck Material: Maple
Neck Finish: Hand-Rubbed Satin Urethane
Neck Shape: Speed Neck with Rolled Fingerboard Edges
Neck Construction: Bolt-On with Graphite Reinforcement
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Ebony
Position Inlays: White Dot
Side Dots: Luminlay®
Number of Frets: 22
Truss Rod: Dual-Action with Wheel
Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
String Nut: Floyd Rose® 1500 Series Locking
Nut Width: 1.6875" (42.86 mm)
Nut Material: Floyd Rose® 1500 Series Locking

Body
Body: Mahogany
Body Finish: Satin
Body Shape: San Dimas® Style 1
Body Style: Solid Body
Body Material: Mahogany

Hardware
Bridge: Floyd Rose® 1500 Series Double-Locking Tremolo
Pickguard: None
Pickup Covers: White
Control Knobs: Strat®-Style Skirt
Switch Tip: Black
Hardware Finish: Black
Tuning Machines: Charvel®-Branded Die-Cast Locking
String Trees: Floyd Rose® Retainer Bar
Strings: Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm: Floyd Rose® 1500 Series Locking
Neck Plate: 4-Bolt Serialized
Strap Buttons: Standard

Electronics
Bridge Pickup: EMG® Jim Root Signature Daemonum™ Open-Coil Active Humbucking
Neck Pickup: EMG® Jim Root Signature Daemonum™ Open-Coil Active Humbucking
Pickup Configuration: HH
Controls: Volume
Switching: 3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Special Electronics: Active Electronics

Measurements
Fret Size: Jumbo
Scale Length: 25.5" (64.77 cm)

Additional Information:
