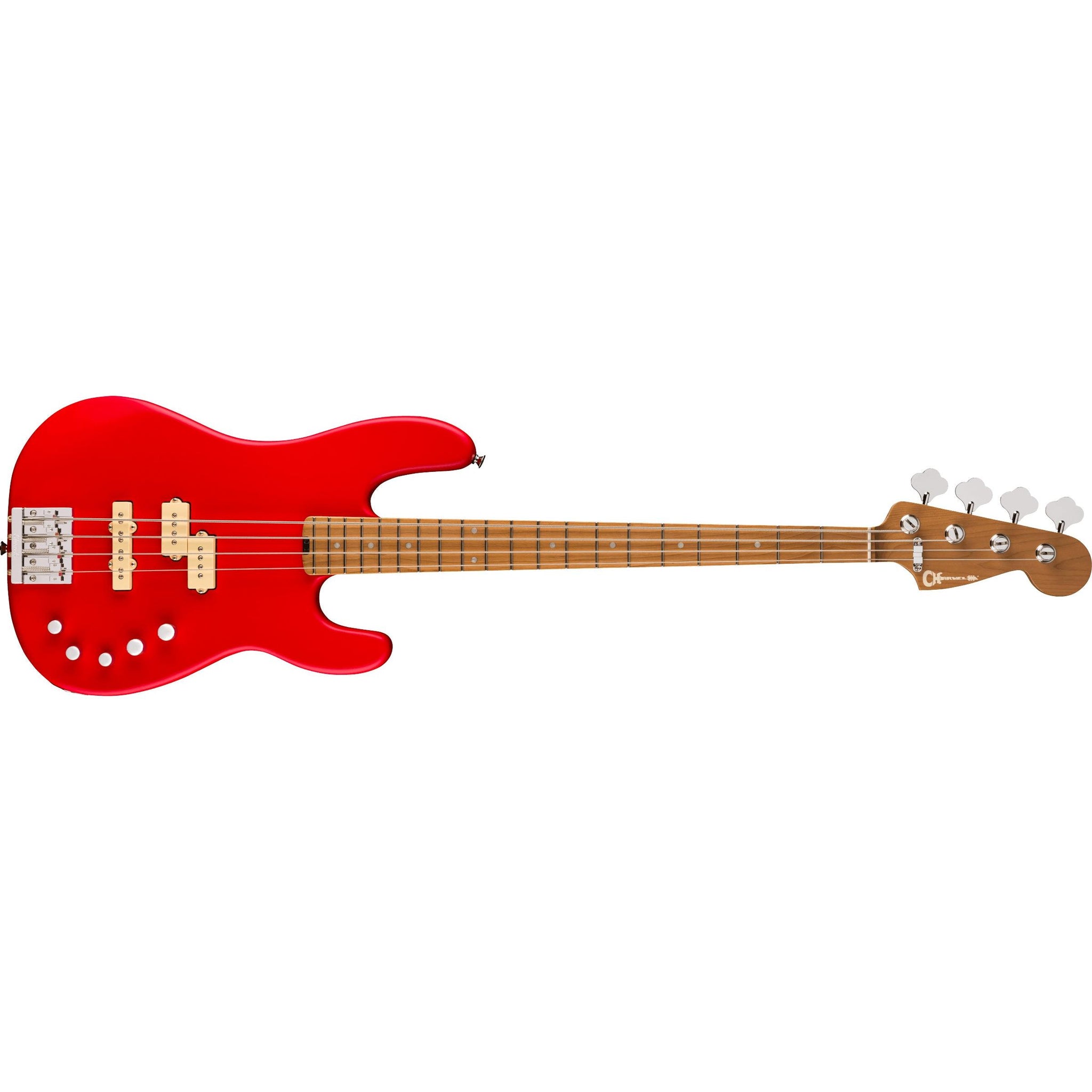

Charvel Pro-Mod San Dimas PJ IV Electric Bass-Ferrari Red Satin

The sleek body shape is a familiar one - straight from the original Charvel San Dimas basses of late 1970s, with the deeper cutaway that gave adventurous bassists effortless upper-register access.

The super-thin bolt-on maple Charvel speed neck is crafted in the original style, with a gorgeous caramelized treatment, graphite reinforcement and heel-mount truss rod wheel for easy adjustment. The 12”-16” compound radius caramelized maple fingerboard gradually flattens from nut to heel for fast, smooth playing, and has rolled edges, 20 jumbo frets and Luminlay® side dots.

And like the originals, the Pro-Mod San Dimas® Bass PJ IV MAH features the powerhouse voice of DiMarzio® pickups - a Model J™ at the bridge for well-rounded punch and a Model P® in the middle for warm and fat tone with a mid-range growl when pushed. Versatile electronics include three-band active EQ, pickup blend control and a master volume control with push/pull selector. The push/pull selector eliminates the risk of losing sound due to a dead battery as a quick pull on the volume knob bypasses the EQ’s active circuit and regains sound from the bass without the use of battery power.

A Charvel HiMass™ bridge, Graph Tech® TUSQ® XL nut and open-gear tuners combine for stellar tuning stability with improved note punch and sustain.

This 4-string bass is presented in a Natural Mahogany and Satin Ferrari Red finishes with chrome hardware, cream pickup covers and licensed Fender® Precision Bass® headstock shape.

Features
Genuine Mahogany body
Caramelized maple neck
12”-16” compound radius caramelized maple fingerboard
DiMarzio pickups
Luminlay side-dots
Volume
Blend
3-band EQ
Charvel Hi-Mass bridge

General
Series: Pro-Mod
Orientation: Right-Hand
Color: Satin Ferrari Red
Country Of Origin: MX

Neck
Headstock: Licensed Fender® Precision Bass®
Neck Material: Caramelized Maple
Neck Finish: Hand-Rubbed Satin Urethane
Neck Shape: Speed Neck with Rolled Fingerboard Edges
Neck Construction: Bolt-On with Graphite Reinforcement
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Caramelized Maple
Position Inlays: Cream Dot
Side Dots: Luminlay®
Number of Frets: 20
Truss Rod: Dual-Action with Wheel
Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
String Nut: Graph Tech TUSQ XL
Nut Width: 1.5" (38.1 mm)
Nut Material: Graph Tech TUSQ XL

Body
Body: Mahogany
Body Finish: Satin
Body Shape: San Dimas® Bass
Body Style: Solid Body
Body Material: Mahogany

Hardware
Bridge: Charvel® HiMass™
Pickup Covers: Cream
Control Knobs: Dome-Style
Hardware Finish: Chrome
Tuning Machines: Charvel® Open-Gear
String Trees: Vintage-Style Disc
Strings: Nickel Plated Steel (.045-.100 Gauges)
Neck Plate: 4-Bolt Standard
Strap Buttons: Standard

Electronics
Bridge Pickup: DiMarzio® Model J™ DP123
Middle Pickup: DiMarzio® Model P® DP122
Pickup Configuration: PJ
Controls: Volume (Push/Pull Selector for Active/Passive Options), Blend, 3-Band EQ (Active Only)
Switching: None
Special Electronics: Active Electronics

Measurements
Fret Size: Jumbo
Scale Length: 34" (86.36 cm)
