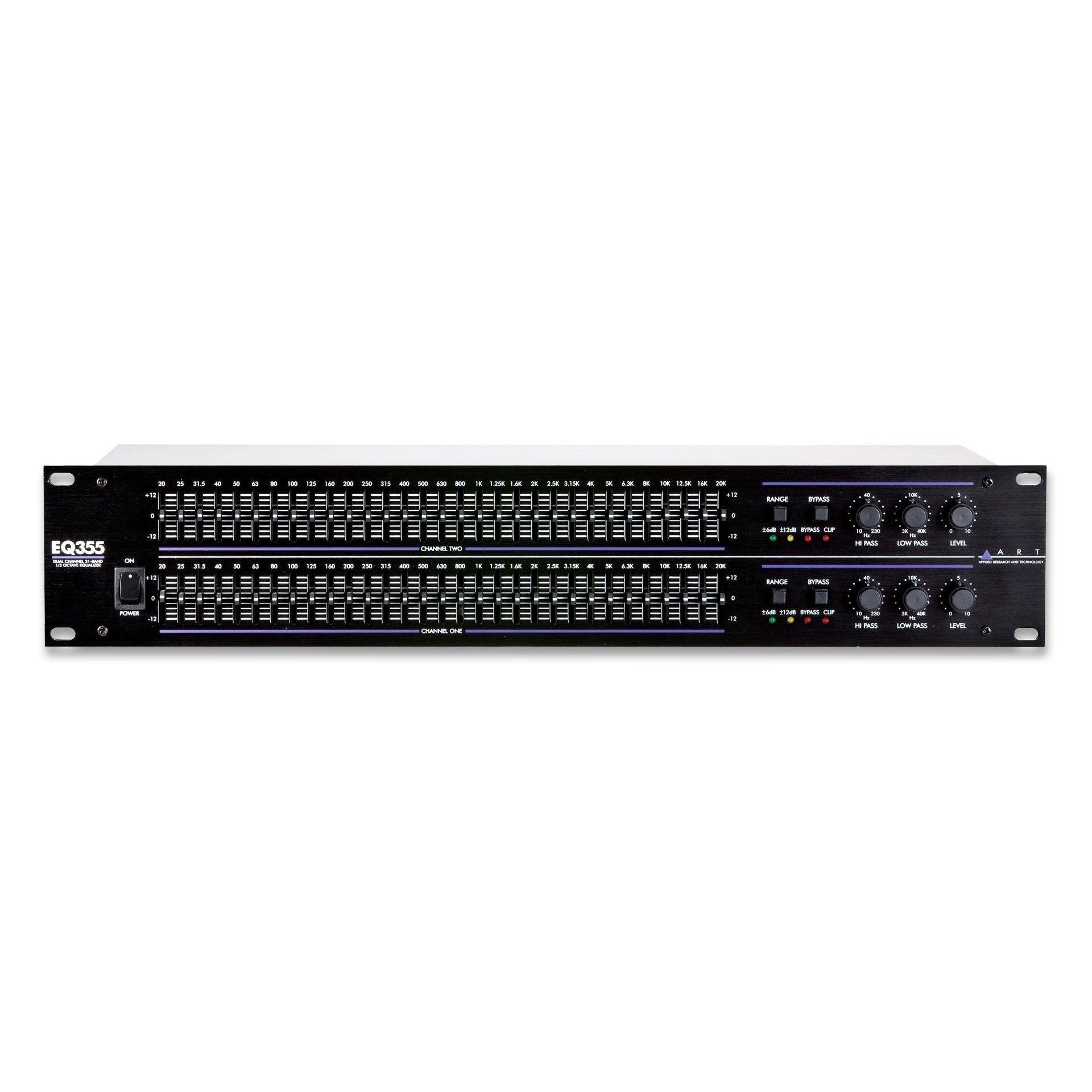

ART EQ355 Dual 31-Band Equalizer

The ART EQ300 Series of graphic equalizers have been designed and engineered to extremely high standards for audio performance and functionality. These innovative, high-quality equalizers are perfect for virtually any audio application where precision frequency tailoring, reliable performance, rugged design and extremely silent processing is important. Rugged construction and solid audio performance make these equalizers particularly well suited to fixed installation as well as touring live sound systems.

The ART EQ 300 Series Highlights:

- May be used in a variety of applications such as live sound, recording studios, instrument racks as well as any conventional fixed installation environment
- The equalizer can be used wherever modification of the frequency contour of a sound is needed
- The graphic equalizer is a powerful tool for solving a number of audio problems and creating interesting sound textures
- Patch the EQ between your mixing console and power amps to allow you to alter the overall mix to better match your environment
- Use the EQ between your monitor mixer and monitor power amps to aid in the removal of feedback inducing frequencies
- Patch into a channel insert to EQ one channel or track individually
- Run your instrument directly into the equalizer to enhance its sound before reaching a power amplifier or instrument amplifier.
- Patch into the effects loop of an instrument amplifier or between a preamp and power amp to have precise control over the complete sound

Key Features
Dual Channel 31-Band Graphic Equalizer
Constant-Q Filtering
Balanced XLR, Active Balanced 1/4″, and Unbalanced RCA Input and Output Connectors
Variable High-Pass and Low-Pass Filters
+/- 6dB or +/-12dB Level Adjustments
20mm Center Detented Frequency Band Sliders
Independent Level and Bypass Controls Per Channel
Designed for Years of continuous, reliable performance
Rugged All Steel Construction
One Year Warranty

Specifications
Filter Type:  Constant Q – 3% center accuracy
Frequency Bands:  31, 1/3 octave, ISO spacing
Frequency Response:  20Hz to 20kHz, +0.5dB
High Pass Filter:  10Hz to 250Hz, 12dB/oct
Input Impedance:  20k Ω (bal), 15k Ω (unbal)
Input/Output Connections:  Active balanced XLR and 1/4″ TRS {XLR pin 2, 1/4″ tip = Hot (+)} Unbalanced RCA
Low Pass Filter:  3kHz to 40kHz, 12dB/oct
Maximum Input Level:  +22dBm
Maximum Output Level:  +18dBm (bal), +22dBm (unbal)
Power:  (Switchable) 95-130VAC, 50/60Hz, 22 W (USA)
Range:  +/-6dB or +/-12dB selectable
Signal to Noise Ratio:  -94dB
Slider Travel:  20mm w/ positive center detent
Total Harmonic Distortion:  0.0001
Warranty:  One Year
Dimensions:  3.5″H x 19″ W x 8.5″ D
Weight:  9.0lbs (4.1kg)
